A desktop printer can put a functional prototype on an engineer’s desk before the next design review. That speed is valuable. But the Bambu Labs vs HP MJF decision becomes more consequential when the part must pass a fit check, survive repeated loading, or arrive consistently across a production batch. These technologies solve different manufacturing problems, even when both are described as 3D printing.
Bambu Lab systems are optimized for accessible, fast fused deposition modeling (FDM). HP Multi Jet Fusion (MJF) is an industrial polymer powder-bed process built for functional parts, repeatable output, and short-run production. The right choice depends less on the printer’s headline speed and more on material requirements, geometry, volume, finishing, and quality-control expectations.

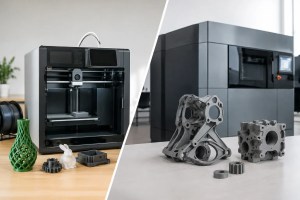

Bambu Labs vs HP MJF: The Core Difference
Bambu Lab printers create parts by depositing melted filament layer by layer. Common materials include PLA, PETG, ABS, ASA, TPU, nylon, and fiber-filled filaments. The machines are compact, relatively economical, and well suited to design teams that need immediate iterations in-house.
HP MJF distributes a thin layer of polymer powder, then selectively applies fusing and detailing agents before thermal energy fuses the required areas. The process repeats until the full build is complete. Unfused powder supports the geometry during printing, which allows complex internal channels, nested parts, and shapes that would require supports in FDM.
That process distinction affects nearly every purchasing and engineering decision. FDM makes material selection simple and low-cost for early prototypes. MJF produces isotropic-like mechanical behavior compared with typical FDM parts, a finer and more uniform surface texture after bead blasting, and better part density for demanding functional use. MJF also supports efficient nesting of many components in one build, which changes the economics as quantities increase.
When Bambu Lab FDM Is the Better Tool
For early-stage form, fit, and assembly work, Bambu Lab FDM can be highly effective. A designer can print an enclosure, bracket, fixture concept, or ergonomic model within hours and modify the CAD file immediately. Filament is easy to stock, material changes are straightforward, and the capital investment is far below an industrial powder-bed system.
FDM is particularly practical when a part is large, cosmetic expectations are modest, and layer lines do not affect performance. It is also useful for low-risk shop aids, drilling templates, assembly fixtures, and concept models where a failed print does not delay a customer shipment or formal validation program.
The limitations should be engineered into the decision. FDM parts generally have directional strength because each layer relies on bonding to the previous layer. A loaded clip, threaded feature, thin wall, or pressure-bearing component may perform differently depending on print orientation. Supports can also leave witness marks, complicate internal features, and add labor after printing.
Material labels require care as well. A carbon-fiber-filled nylon filament may deliver a stiff prototype, but it is not directly interchangeable with an industrial MJF PA12 part. Fiber-filled filaments can be abrasive, moisture-sensitive, and more brittle in thin sections. Their performance depends on print temperature, drying, nozzle condition, orientation, and process settings. For exploratory work, this may be acceptable. For controlled production, it is a significant variable.
Where HP MJF Delivers a Production Advantage
HP MJF is designed for applications where part performance and output consistency matter more than owning a low-cost printer. PA12 is widely used for durable housings, ducting, clips, brackets, enclosures, jigs, fixtures, and end-use plastic components. PA11 offers greater ductility and impact resistance, making it suitable for parts that require flexibility and fatigue performance.
Because parts are surrounded by powder rather than attached to a build plate with support structures, MJF is well suited to complex geometry. Engineers can consolidate assemblies, create lightweight lattice regions, integrate living hinges where the material supports them, and produce enclosed channels without designing around support removal. This freedom is valuable only when dimensional allowances, powder removal paths, and finishing requirements are considered from the start.
For short-run production, MJF’s build packing is often decisive. Multiple SKUs can occupy the same build volume, and parts can be nested efficiently rather than printed one at a time on a desktop machine. This makes it practical to produce hundreds of functional components without creating tooling. Lead time is not only a question of print speed. It includes file preparation, build planning, cooling, depowdering, bead blasting, dyeing or coating where required, inspection, and shipping. A controlled MJF workflow manages the full sequence.
MJF also gives manufacturing teams a more consistent path from prototype to production. A PA12 prototype can be tested in the same material family used for a small production batch, reducing the gap between what was validated and what is ultimately delivered. That continuity is often more valuable than the lowest unit cost on a single early prototype.
Surface finish and appearance
Neither process should be selected on the assumption that it produces injection-molded surfaces directly from the machine. FDM typically shows visible layer lines, particularly on curved or angled surfaces. MJF produces a matte, finely textured gray surface after standard depowdering and bead blasting.
MJF parts can be dyed black or finished with coatings to improve appearance, cleanability, or wear resistance. FDM can also be sanded, painted, vapor-smoothed in compatible materials, or otherwise finished. The difference is repeatability. A service bureau can apply a defined finishing process across a batch, while manual finishing of desktop prints can introduce variation in dimensions and appearance.
Accuracy and tolerances
Both technologies can produce accurate parts when the design is appropriate for the process. Neither eliminates the need for tolerance analysis. FDM accuracy can be affected by shrinkage, warping, extrusion calibration, support strategy, and orientation. MJF accuracy is influenced by material behavior, thermal distribution, part geometry, build placement, and post-processing.
For mating components, threaded inserts, press fits, bearing seats, or sealing surfaces, design nominal dimensions alone are not enough. Specify critical features, identify datums, and discuss tolerance requirements before production. In some cases, additive manufacturing is used to create the near-net shape, followed by CNC machining on the critical interface. This hybrid approach is often more reliable than forcing every feature to meet a tight tolerance directly from the printer.
Cost: Compare the Full Manufacturing Cost
A Bambu Lab printer has a clear advantage in entry cost. For a few internal prototypes each week, purchasing a desktop machine and filament can be financially justified. The operator can start a print immediately, and the cost per part may appear very low.
However, the true cost includes labor, failed builds, machine maintenance, material storage, part removal, support cleanup, quality inspection, and the cost of schedule disruption when a critical part does not meet requirements. These costs rise quickly when the team is producing numerous variants or when parts need documented repeatability.
HP MJF has a higher per-build and per-part service cost for a single simple prototype. Yet the comparison shifts when parts require production-grade nylon, complex unsupported geometry, professional finishing, or repeatable batches. It also shifts when engineers need to avoid capital equipment, powder handling, trained operators, and process validation inside their own facility.
A Practical Selection Framework
Choose Bambu Lab FDM when the priority is immediate iteration, low-volume internal use, and economical prototypes where layer orientation and surface finish are acceptable design constraints. It is a capable tool for shortening the earliest stages of development.
Choose HP MJF when the priority is durable nylon parts, complex geometry, better batch consistency, short-run production, or parts that will be tested and used in real operating conditions. It is especially appropriate when a prototype must represent the mechanical intent of the production component rather than simply demonstrate shape.
For many teams, the strongest workflow uses both. Desktop FDM handles rapid concept cycles and simple in-house aids. MJF is introduced when the design is stable enough for functional validation, customer samples, pilot builds, or end-use production. This avoids spending industrial-process budget on every early revision while preventing a late-stage surprise when an FDM prototype does not translate to production material behavior.
An ISO 9001:2015-controlled manufacturing partner can add value at that transition point by reviewing manufacturability, selecting between PA12 and PA11, defining finishing requirements, and maintaining traceable production workflows. Additive3D Asia supports that progression from prototype through short-run manufacturing without requiring teams to manage separate suppliers for printing, machining, and finishing.
The useful question is not which printer is better in isolation. Ask what the part must prove, how many must perform the same way, and what happens if a failure reaches the next stage of your program. Those answers will usually make the process choice clear.
