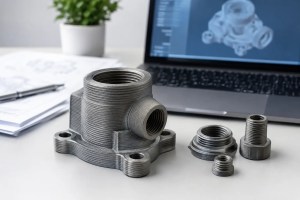

A threaded feature can turn an otherwise successful prototype into a failed assembly. When teams design printed threads as if they were machined threads, they often encounter loose fits, cross-threading, weak bosses, or inconsistent engagement between builds. The right approach to design printed threads starts with the intended load, production process, material, and number of assembly cycles.

For a one-off enclosure, a printed thread may be entirely appropriate. For a serviceable industrial assembly, a threaded insert or machined interface may be the better engineering decision. The objective is not simply to reproduce a thread profile in CAD. It is to produce a connection that fits, carries load, and remains repeatable through manufacturing.

Design Printed Threads Around the Application

Start by defining what the thread must do. A cap that is tightened by hand has very different requirements from a mounting point that sees vibration, repeated maintenance, or high clamp loads. Thread size alone does not determine success.

Internal threads are usually more vulnerable than external threads because powder, resin residue, support marks, and process variation can accumulate inside the feature. Small internal threads also have less material surrounding them, making them more likely to strip or crack. External threads are generally easier to print, inspect, and chase after production, but they can still suffer from poor layer adhesion or insufficient root strength.

Consider four practical questions before modeling the feature:

• How much torque and axial load will the connection experience?
• How many assembly and disassembly cycles are expected?
• Is the thread exposed to heat, chemicals, moisture, or vibration?
• Does the mating component use a standard fastener, a printed cap, or another manufactured part?

These answers guide the process selection. They also determine whether printing the final thread is sensible at all.

Choose the Manufacturing Process Before Finalizing Geometry

Each additive process produces a different surface condition, dimensional capability, and strength profile. A thread that works well in one material-process combination may be unsuitable in another.

Polymer Powder Bed Printing

HP Multi Jet Fusion and SLS are strong options for functional polymer parts with printed threads. PA12 offers a good balance of toughness, chemical resistance, and dimensional stability, while PA11 can provide greater ductility for impact-prone components. These processes avoid support structures, which is valuable for threaded features located inside complex housings.

However, powder bed parts have a matte surface texture. Fine threads may feel tight or rough until cleaned, and very small pitches may not reproduce consistently. Design clearance into the assembly rather than expecting a nominal CAD fit to function directly off the machine.

SLA Resin Printing

SLA can produce fine detail and smooth thread surfaces, especially for small features and visual prototypes. Its limitations are material-dependent. Many standard photopolymer resins are more brittle than engineering thermoplastics, so threads can chip, crack, or wear under repeated tightening. Tough and high-temperature resins expand the application range, but material performance still needs to be assessed against the joint load.

SLA is often effective for low-load threaded closures, fit-check prototypes, and master patterns. It is less appropriate for a repeatedly serviced structural interface unless testing confirms the design.

FDM Printing

FDM can create usable larger threads quickly, particularly when the thread axis is vertical and the feature is generously sized. Layer lines and anisotropic strength are the main constraints. A threaded boss loaded across layer boundaries can split under torque, even when the nominal thread profile looks correct.

For FDM parts, use larger threads, thicker walls, and conservative tightening torque. If production consistency is required, specify the machine, material, nozzle size, orientation, and post-processing method rather than treating FDM as a single uniform process.

Metal Additive Manufacturing

Metal SLM enables threaded features in AlSi10Mg, SS316L, and other industrial alloys, but direct-printed threads should be evaluated carefully. Surface roughness, powder removal, support access, and distortion can affect the final fit. For critical threads, printing an undersized pilot feature and machining or tapping it afterward is usually the more reliable route.

This hybrid strategy preserves the geometric freedom of additive manufacturing while applying conventional machining where precision and surface finish matter most.

Use Thread Sizes That Match the Process Capability

The smallest thread that can be modeled is not necessarily the smallest thread that can be produced reliably. Feature definition, material shrinkage, orientation, and finishing all reduce the usable limit.

For polymer additive parts, larger coarse-pitch threads generally outperform fine threads. They have deeper roots, stronger crests, better debris tolerance, and more predictable assembly. Where the design permits, select a larger diameter or coarser pitch instead of forcing a fine machine-thread standard into a printed feature.

Avoid relying on nominal dimensions alone. A CAD model may specify a perfect internal thread, yet the manufactured thread can close up slightly because of surface texture or process compensation. Likewise, external threads can print oversized or develop rough crests. Build in radial clearance between mating printed features and validate the final allowance through a test coupon or first article.

There is no universal clearance value. The correct allowance depends on process, material, thread size, orientation, post-processing, and mating-part construction. A PA12 MJF cap mating with a PA12 MJF body needs different compensation than an SLA prototype mating with a machined aluminum component. A manufacturing partner should review the actual CAD geometry before committing to a production tolerance.

Model the Surrounding Feature for Strength

A thread fails at the surrounding boss or wall as often as it fails at the thread itself. The design must distribute load into the part body.

Use adequate wall thickness around internal threads and avoid placing a threaded hole too close to an outer edge. Add fillets at the base of bosses to reduce stress concentration. For externally threaded sections, provide a solid core and avoid abrupt transitions from a thin wall into the threaded zone.

A lead-in chamfer is particularly valuable for printed threads. It helps the mating component start cleanly, reduces cross-threading, and makes minor surface variation less disruptive. A thread relief or runout area at the end of the feature can also prevent the mating part from bottoming out against an incomplete final thread.

If the thread must seal fluid or retain pressure, do not assume the thread itself will provide the seal. Printed surfaces can contain micro-roughness and pathways that are unsuitable for direct sealing. Use a dedicated gasket, O-ring groove, or machined sealing surface where the application requires it.

Orient Printed Threads for Better Results

Build orientation influences thread accuracy, strength, and surface quality. For many processes, orienting a cylindrical threaded feature along the build axis can improve circularity and reduce stair-stepping across the thread form. It may also simplify powder evacuation from internal features.

The trade-off is not always straightforward. A preferred thread orientation may create a less favorable orientation for another critical face, increase support requirements, or weaken the part in its primary load direction. Orientation should therefore be decided at the assembly level, not feature by feature.

For FDM, orientation is especially consequential. If tightening torque tends to force layers apart, redesign the load path, change the build orientation, or use an insert. For powder bed processes, ensure that blind threaded cavities have a practical route for powder removal and cleaning.

Know When to Use Inserts or Post-Machining

Printed threads are best reserved for low-load joints, large-format closures, prototype assemblies, and applications with limited service cycles. For many functional products, inserts deliver a more dependable result.

Heat-set inserts are widely used in suitable thermoplastics and can provide repeatable metal threads for electronic enclosures, fixtures, and serviceable assemblies. Press-fit or self-tapping inserts may be appropriate depending on the polymer and boss design. The surrounding geometry must still be designed to prevent cracking or pullout.

For metal parts and high-precision polymer assemblies, post-machined threads are often the preferred choice. Print a pilot hole, leave machining stock where required, then drill and tap the feature to the final standard. This approach is particularly effective for fine threads, tight positional tolerances, high torque, and interfaces that must meet established hardware specifications.

At Additive3D Asia, process selection can combine additive manufacturing with CNC machining and post-processing when a printed part needs both complex geometry and production-ready threaded interfaces.

Validate the Assembly, Not Just the CAD Model

Thread validation should include the actual mating component, intended torque, and expected use conditions. A visual inspection is not enough. Test engagement length, start quality, tightening feel, pullout resistance, and performance after repeated cycles.

For controlled production, define the inspection method early. A go/no-go gauge may be appropriate for standard critical threads. For lower-volume custom features, a verified mating component and documented assembly test may provide more useful confirmation. Record the accepted orientation, material, finishing condition, and any tapping or insert-installation parameters so the result can be repeated on future orders.

A reliable threaded feature comes from treating it as a manufactured interface rather than a CAD detail. Specify the load case, select the process and material, allow for real production variation, and validate the complete joint before scaling. That discipline prevents small thread failures from becoming expensive assembly delays.
